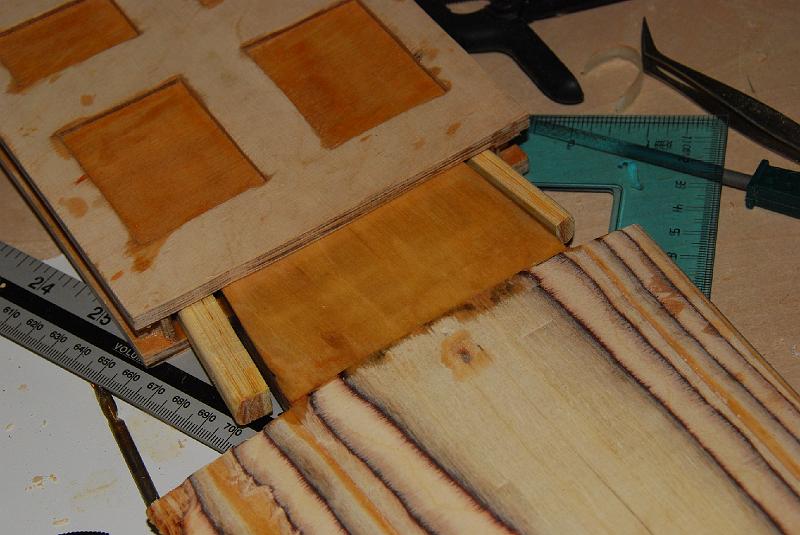

  DSC_0010.JPG - with the keel pulled slightly out of the keel box the inserts that position the keel for and aft. these allow the keel a total of about 20mm for and aft movement.






with the keel pulled slightly out of the keel box the inserts that position the keel for and aft. these allow the keel a total of about 20mm for and aft movement.
